Perforated Metal Mesh For Decorative 1.22*2.44m Round / Square Hole 3.0mm
Description of Perforated Wire Mesh
Perforated Metal Mesh are sheets of steel,aluminum,stainless steel or specialty alloys that are punched with round,square or ornamental holes in a uniform pattern.Popular sheet thickness ranges from 26 gauge through 1/4" plate(thicker plates are available on special order). Common hole size range from .020 to 1" and greater.
Perforated metal mesh,also known as perforated sheet,perforated screen,is sheet metal that has been manually or mechanically stamped or punched to create a pattern of holes,slots,or decorative shapes.
The round hole mesh is usually made of white galvanized steel plate, stainless steel plate, copper plate, aluminum plate, nickel plate and alloy plate,and punched through a die by punching. The product has the characteristics of beautiful appearance, strong integrity, uniform mesh, smooth mesh surface, processing, and low cost.
Advantages of Perforated Wire Mesh
- light weight
- uniform sound abatement
- wide range of thicknesses available
- superior abrasion resistance
- can be formed easily
- can be paint or polished
- attractive appearance
- wide range of thicknesses available
- largest selection of hole size patterns and configurations
Product Specification of Perforated Wire Mesh
| The common sizes of Suicheng Metal Product CO.,Ltd |
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity
(%) | Weight
(kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 |
| 3 | 4 | 16 | 1 | 2 | 19.6 | |
Surface Treatment of Perforated Wire Mesh
1.For aluminum mater mill finish :
Anodized finish (silver only )powder coated (any color ) PVDF (any color ,smoother surface and longer life span)
2.For iron steel material galvanized:electric galvanized ,hot-dip galvanized ,powder coated
Application of Perforated Wire Mesh
Perforated Metal Mesh used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Packing of Perforated Wire Mesh
1.waterproof paper then PVC shrinked
2.PVC shrinked only
3.black waterproof paper only
4.waterproof paper then metal/wooden pallet
5.plastic film then carton. Also at your request
Production Show of Perforated Wire Mesh
Product Tags:
|
|

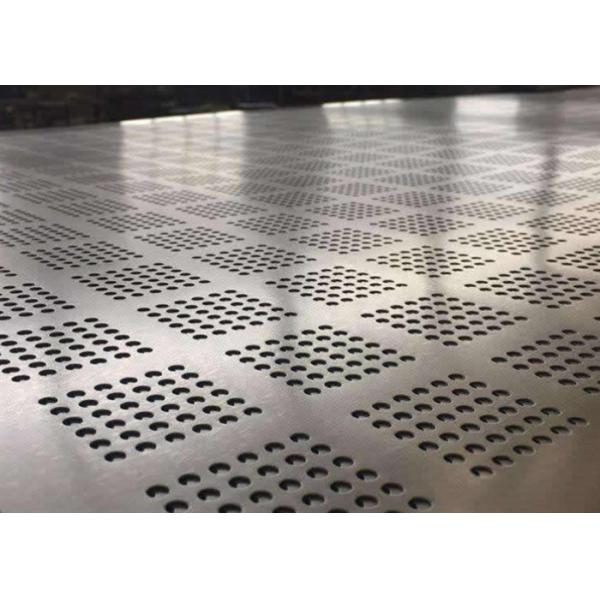

Decorative 1.22*2.44m Perforated Metal Mesh Round / Square Hole 3.0mm Images
|
